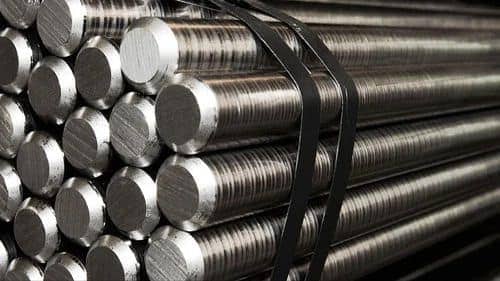

Scraped bars
Scraped bars in C45, 20MnV6, and 42CrMo4 to EN 10277-2 with h9/h11 OD tolerance for hydraulic cylinders; straightened and oiled.
Technical specifications
| Parameter | Specification |
|---|---|
| Steel grades | C45 / 20MnV6 / 42CrMo4 |
| Standard | EN 10277-2 / EN 10083 |
| OD tolerance | h9 / h11 |
| Straightness | max 0.5 / 1000 mm |
| Roughness | Ra ≤ 1.6 μm |
| Diameter range | 20–250 mm |
| Length | 3,000–7,000 mm |
| Protection | Straightened and oiled |
Applications
- Bars for hydraulic cylinders
- Base material for chrome plating
- Precision machining
- Heavy-duty hydraulic and industrial applications
