Continuous cast iron – bars and squares

Round, square, and rectangular cast iron sections with excellent machinability for bushings and hydraulic components.

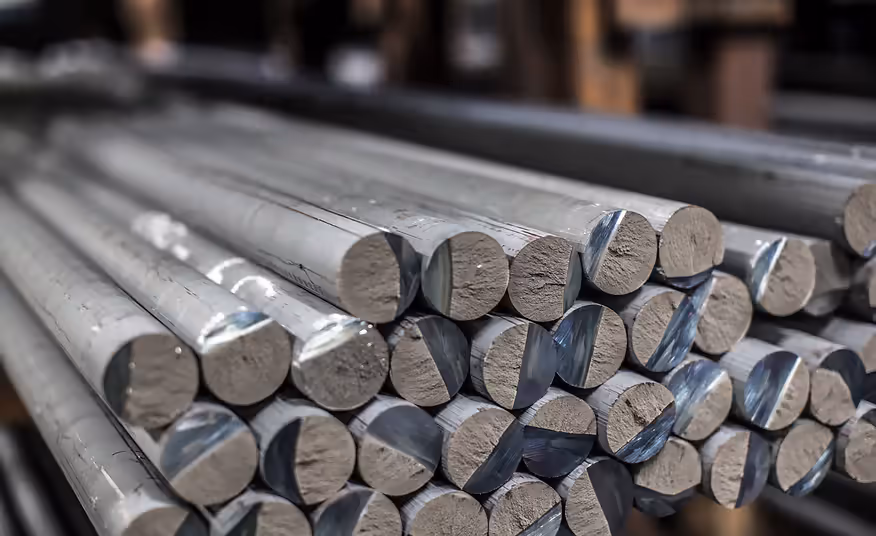

Continuous cast iron – bars and squares 1
Continuous cast iron – bars and squares 2

Technical specifications

GradeFormDimensionsProperties
EN-GJL-250CRoundØ40–Ø440 mmTensile 155–195 MPa; 170–240 HB
EN-GJL-250CSquare40×40–300×300 mmTensile 155–195 MPa; 170–240 HB
EN-GJS-500-7CRoundØ40–Ø440 mmTensile 420–500 MPa; 150–230 HB
EN-GJS-500-7CSquare40×40–300×300 mmTensile 420–500 MPa; 150–230 HB
EN-GJS-500-7CRectangularOn requestTensile 420–500 MPa; 150–230 HB
EN-GJL-150C / 200C / 300CVariousOn requestGrey cast iron grades
EN-GJS-400-15C / 600-3CVariousOn requestDuctile iron grades

Applications

  • Bushings and bearings
  • Valve bodies
  • Hydraulic blocks
  • Machining stock
